rasa 实体,意图

介绍(Introduction)

Looking at the chatbot development tools and environments currently available, there are three ailments which require remedy:

查看当前可用的聊天机器人开发工具和环境,有三种需要补救的疾病:

  • Compound Contextual Entities

    复合上下文实体

  • Entity Decomposition

    实体分解

  • Deprecation of Rigid State Machine, Dialog Management

    弃用刚性状态机,对话框管理

Rasa is actively addressing all three of these items. But, the concern of this article is entities which can be decomposed and broken up into types or groupings.

Rasa积极解决所有这三个问题。 但是,本文关注的是可以分解并分解为类型或分组的实体。

For example, in a banking scenario, you will most probably have the entity of account. This alone can suffice and in general you don’t have more options to work with.

例如,在银行业务场景中,您很可能拥有帐户实体 仅此一项就足够了,通常您没有更多选择。

But the ideal is to have the ability to create subsets for entities. Or, as in this case, be able to assign roles to the entity of account. For instance, there are different types of accounts. When you transfer money, you would want to have a to and from type of entity account.

但是理想的情况是具有为实体创建子集的能力。 或者,在这种情况下,可以将角色分配给account的实体。 例如,有不同类型的帐户。 当你汇款,你会希望有一个实体类型的帐户

添加实体角色 (Adding Entity Roles)

In the nlu.md file, I have defined an intent to exchange money from one currency to another. This is an example of a user utterance with compound entities.

nlu.md文件中,我定义了一种将货币从一种货币兑换为另一种货币的意图。 这是使用复合实体的用户话语的示例。

Within the user utterance, three entities are defined:

在用户话语中,定义了三个实体:

  • Transaction

    交易
  • Currency

    货币
  • Date/Time

    约会时间

Here is an example of how to define entities with roles in the nlu.md file.

这是一个如何在nlu.md文件中定义具有角色的实体的示例

## intent:exchange- I want to [change](transaction) [US dollars]{"entity": "currency", "role": "change_from"} to [Euros]{"entity": "currency", "role": "change_to"} on [Friday](date_time)- Can I [exchange](transaction) [euros]{"entity": "currency", "role": "change_from"} for [Rand]{"entity": "currency", "role": "change_to"} on [Saturday](date_time)- give me a rate to [change](transaction) [pounds sterling]{"entity": "currency", "role": "change_from"} for [Japanese Yen]{"entity": "currency", "role": "change_to"} on [Monday](date_time)- what are rates to [convert](transaction) [Australian Dollar]{"entity": "currency", "role": "change_from"} for [Russian Ruble]{"entity": "currency", "role": "change_to"} on [next week Thursday](date_time)- I want to [change](transaction) [US dollars]{"entity": "currency", "role": "change_from"} to [Canadian dollar]{"entity": "currency", "role": "change_to"} on [Friday](date_time)

The entity of currency is broken up into two roles:

货币实体分为两个角色:

  • Change From and

    更改

  • Change To.

    改成。

Here is a practical example of user input requesting to exchange money. This is performed using Postman and the Rasa NLU API.

这是用户输入请求兑换货币的实际示例。 这是使用Postman和Rasa NLU API执行的。

Image for post
User utterance example with multiple compound entities.
具有多个复合实体的用户话语示例。

The JSON output clearly define the recognized intent of exchange. With this, three entities are identified. The entity of currency has an additional value of role. In this case, the segmenting the currency changed from and to.

JSON输出明确定义了公认的交换意图 这样,确定了三个实体。 货币实体具有附加的角色价值 在这种情况下,对货币的细分从和更改为。

Image for post
exchange with the 实体entities and 各自角色的 respective roles. 交换

添加实体组 (Adding Entity Groups)

Entity groups allow for entities to be grouped together. In the banking example, I have created the entity tiers. There are 5 tiers; Silver, Gold and Bronze; grouped together. Constituting group one.

实体组允许将实体分组在一起。 在银行业务示例中,我创建了实体。 共有5层; 银,金和青铜; 分组在一起。 组成第一组。

Platinum & Black are grouped together. Constituting group two.

白金黑色组合在一起。 组成第二组。

Here is an example on how to define entities with groups in the nlu.md file.

这是有关如何在nlu.md文件中定义具有组的实体的示例

## intent:tiers- [Silver]{"entity": "tiers", "group": "1"} accounts have lower interest for saving than [Platinum]{"entity": "tiers", "group": "2"} - [Gold]{"entity": "tiers", "group": "1"} accounts have lower interest for saving than [black]{"entity": "tiers", "group": "2"}- [Bronze]{"entity": "tiers", "group": "1"} accounts have lower interest for saving than [Platinum]{"entity": "tiers", "group": "2"}

And the example of a user utterance, mentioning two of the tiers.

还有一个用户话语示例,其中提到了两个层次。

Image for post
User utterance with different tiers which can be grouped.
可以分组的不同级别的用户话语。

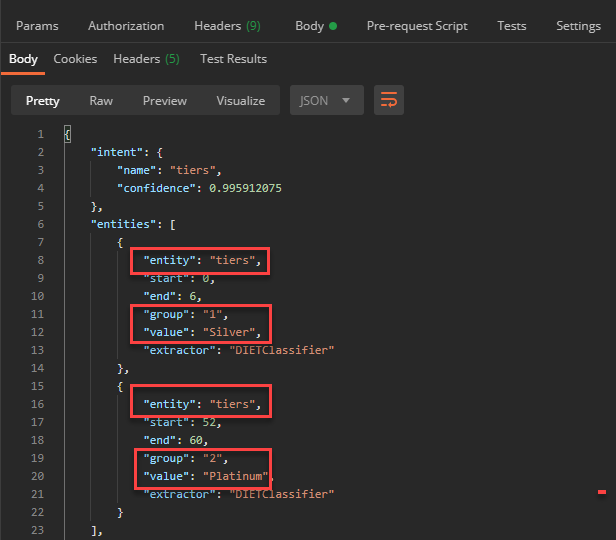

The result is a JSON output with the entity tiers defined, and the grouping of the entity.

结果是定义了实体和实体分组的JSON输出。

Image for post
tiers is correctly identified, with the 值正确标识了意图 group value for each entity.

Rasa实体 (Rasa Entities)

语境与复合(Contextual & Compound)

One of Rasa’s strong points all along were compound and contextual entities.

一直以来,Rasa的强项之一是复合实体和上下文实体。

Contextually means that entities are not recognized by the chatbot by asking the user directly for the input, or found via a finite lookup list. But rather entities are detected based on their context within the utterance or sentence.

上下文意味着聊天机器人无法通过直接向用户询问输入或通过有限的查找列表来发现实体。 而是根据实体在话语或句子中的上下文来检测实体。

This is closer aligned with how we as humans detect entities in a conversation.

这与我们人类如何检测对话中的实体更加一致。

Image for post
Rasa ~ Compound & Contextual Entities in Rasa-X
Rasa〜Rasa-X中的复合和上下文实体

Compound entities mean I can capture multiple entities per intent, or user utterance. In a scenario where the user gives you all the information in one utterance, you have the ability to capture all those values in one go.

复合实体意味着我可以根据意图或用户话语捕获多个实体。 在用户一次发给您所有信息的情况下,您可以一次性捕获所有这些值。

This translate into fewer dialog turns and a more efficient chatbot.

这样可以减少对话次数,提高聊天机器人的效率。

实体角色 (Entity Roles)

The starting point of entities are that you can add labels to words. Hence you can define concepts in your data.

实体的起点是可以在单词上添加标签。 因此,您可以在数据中定义概念。

In the example below, you have different city types defined with other entities.

在以下示例中,您与其他实体定义了不同的城市类型。

## intent:travel_details- I want to travel by [train](travel_mode) from [Berlin](from_city) to [Stuttgart](to_city) on [Friday](date_time)

This is not elegant, as multiple entities need to be created for one real-word object, namely city.

这不是很优雅,因为需要为一个实词对象(即city)创建多个实体。

And in this example, city have two roles; the city of departure and the city of arrival. With Rasa you are able to define these entities with specific roles in your project’s nlu.md file.

在这个例子中,城市扮演着两个角色。 出发城市和到达城市。 使用Rasa,您可以在项目的nlu.md文件中定义具有特定角色的这些实体。

## intent:travel_details
- I want to travel by [train](travel_mode) from [Berlin]{"entity": "city", "role": "depart"} to [Stuttgart]{"entity": "city", "role": "arrive"} on [Friday](date_time)

The output looks like this:

输出如下所示:

I want to travel by train from Berlin to Stuttgart on next week Wednesday.
{
"intent": {
"name": "travel_details",
"confidence": 0.9981381893157959
},
"entities": [
{
"entity": "travel_mode",
"start": 20,
"end": 25,
"value": "train",
"extractor": "DIETClassifier"
},
{
"entity": "city",
"start": 31,
"end": 37,
"role": "depart",
"value": "Berlin",
"extractor": "DIETClassifier"
},
{
"entity": "city",
"start": 41,
"end": 49,
"role": "arrive",
"value": "Stuttgart",
"extractor": "DIETClassifier"
}
],
"intent_ranking": [
{
"name": "travel_details",
"confidence": 0.9981381893157959
},

实体组 (Entity Groups)

This feature allows for entities to be grouped together with a specific group label. The best way to explain this is with an example…

此功能允许将实体与特定的组标签一起分组。 最好的解释方法是举一个例子……

Again, defined in your /data/nlu.md file:

同样,在您的/data/nlu.md文件中定义:

## intent:teams- The first team will be [John]{"entity": "teamMember", "group": "1"}, [Mary]{"entity": "teamMember", "group": "1"} and [Geoff]{"entity": "teamMember", "group": "1"} and the second groupto travel will be [Martha]{"entity": "teamMember", "group": "2"}, [Adam]{"entity": "teamMember", "group": "2"} and [Frank]{"entity": "teamMember", "group": "2"}.

And the output from Rasa NLU:

以及Rasa NLU的输出:

The first team will be John, Mary and Geoff and the second group to travel will be Martha, Adam and Frank.
{
"intent": {
"name": "teams",
"confidence": 0.9999754428863525
},
"entities": [
{
"entity": "teamMember",
"start": 23,
"end": 33,
"group": "1",
"value": "John, Mary",

"extractor": "DIETClassifier"
},
{
"entity": "teamMember",
"start": 38,
"end": 43,
"group": "1",
"value": "Geoff",

"extractor": "DIETClassifier"
},
{
"entity": "teamMember",
"start": 83,
"end": 95,
"group": "2",
"value": "Martha, Adam",

"extractor": "DIETClassifier"
},
{
"entity": "teamMember",
"start": 100,
"end": 105,
"group": "2",
"value": "Frank",

"extractor": "DIETClassifier"
}

结论 (Conclusion)

It is evident that there are a few applications where complex user utterances and compound entities will need to be handled. This development by Rasa will most probably be extended and include other structures.

显然,在一些应用程序中,需要处理复杂的用户话语和复合实体。 Rasa的这项开发很可能会扩展并包括其他结构。

在这里阅读更多 (Read More Here)

翻译自: https://medium.com/@CobusGreyling/define-concepts-in-your-entity-data-with-rasa-cc133f865860
